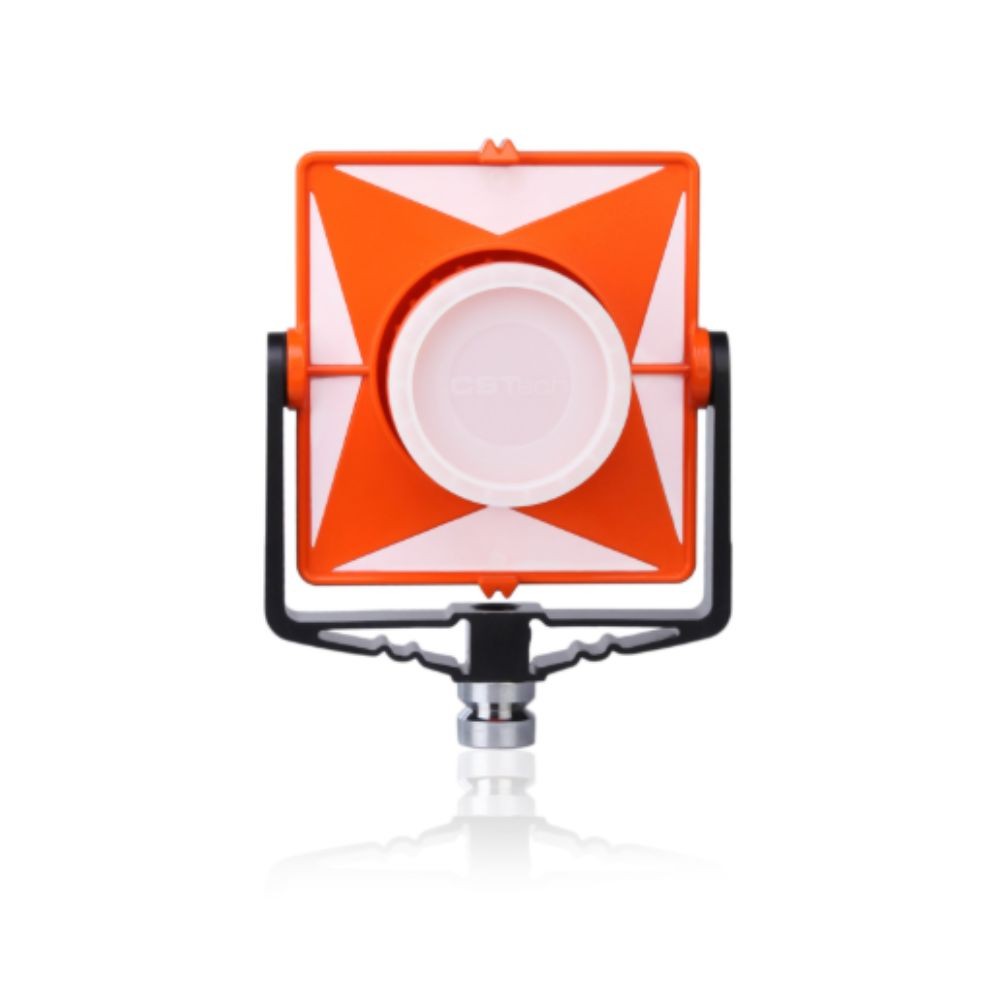

2010 Series Polycarb Single Tilting Prism System
Model: 63-2010M-Y/O
The 2010 series is a lightweight yet durable single tilting prism system designed for performance and longevity. It combines a high-impact polycarbonate body with a precision-machined aluminum yoke for a perfect balance of reduced weight and job site resilience. Offering dual-offset positions and high-accuracy optics, it's a reliable choice for surveyors who need to move fast without sacrificing precision.
Core Features:
Lightweight & Durable Build: The canister, target, and holder are made from tough, lightweight polycarbonate, while the yoke is machined from aluminum with nylon washers for smooth, long-term wear resistance.
Fast Sight Alignment: A unique "V-Groove" is built directly into the target plate, providing a clear line of sight for rapid alignment with the measurement point.
Versatile Target: The tilting, dual-sided target can swivel a full 360 degrees, offering maximum flexibility in the field.
Universal Compatibility: Fully compatible with systems from leading manufacturers like Sokkia, Trimble, and Topcon using the included bayonet adapter.
What's Included:
(1) 2010 Series Single Tilting Prism System
(1) 5/8-11 Bayonet Adapter
Specifications:
Specification | Detail |
Prism Glass Diameter | 62 mm |
Prism Canister Diameter | 62.5 mm (2.5 in) |
Accuracy | ≤5 arcseconds |
Offset Positions | 0 mm and -30 mm |
Tilting Axis Height | 115 mm |
Material | Polycarbonate Holder, Aluminum Yoke |
Mounting | Dual M20 threads with a 5/8-11 bayonet adapter |
Target Colors | Available in Yellow/Orange |
